STF TRAINING SCHOOLOverview
Total Plot Area 54 Acrs
Proposed Build Up Area : 14933.6 sqm
Salient Features
| Building | Ground Floor Area (in sqm) |
1st Floor Area (in sqm) |
2nd Floor Area (in sqm) |
Total (in sqm) |
|---|---|---|---|---|
| Administrative & Training Block | 1225.46 | 1225.46 | 1225.46 | 3676.38 |
| Senior Officers qtrs (G.O) | 310.36 | 338.76 | 338.76 | 987.88 |
| Trainee & Trainer Accommodation | 986.85 | 986.85 | 986.85 | 2960.55 |
| Instructor Suite | 695 | 730 | 730 | 2155 |
| Central Kitchen | 511.42 | 511.42 | 511.42 | 1534.26 |
| Central Kitchen | 511.42 | 511.42 | 511.42 | 1534.26 |
| M.I Room (Including Observation) | 471.28 | 0 | 0 | 471.28 |
| U.S qtrs (NGO Accommodation) | 180.75 | 180.75 | 180.75 | 542.25 |
| L.S qtrs (NGO Accommodation) | 250 | 250 | 250 | 750 |
| Indoor/Gymnasium | 972 | 0 | 0 | 972 |
| Indoor Firing Range | 264 | 0 | 0 | 264 |
| Transport Garage | 485 | 135 | 0 | 620 |
Floor Plan

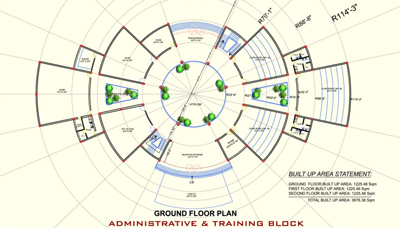

Ground Floor Plan

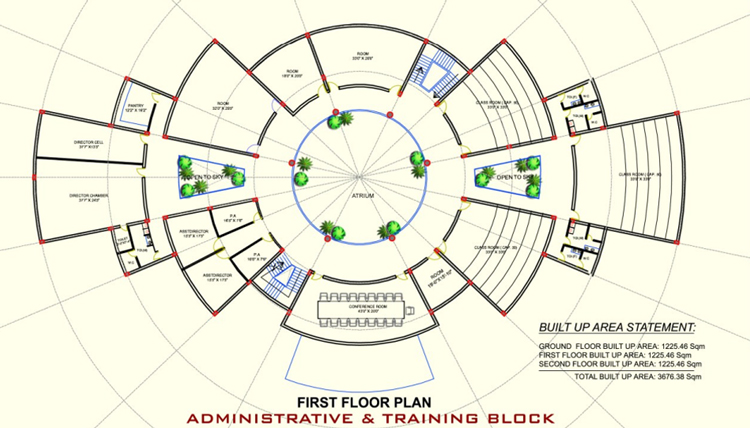

1st Floor Plan

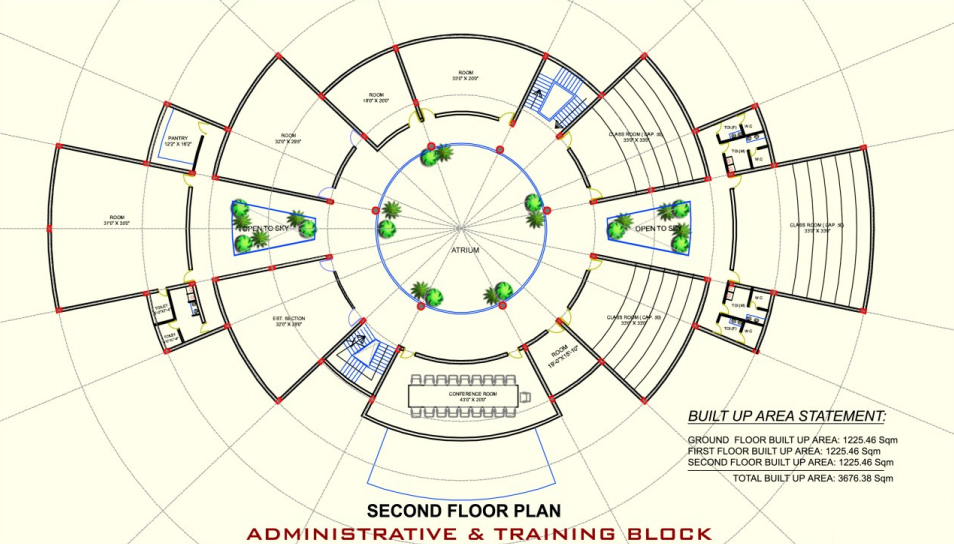

2nd Floor Plan

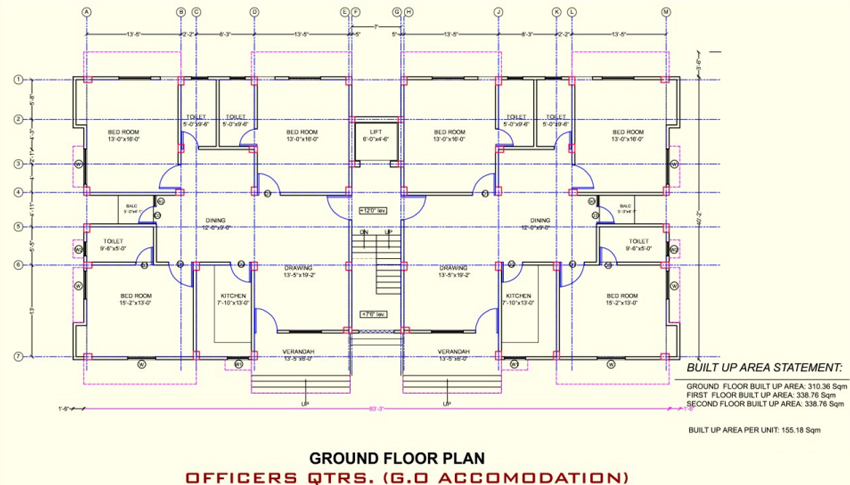

Ground Floor Plan Officers QTRS.

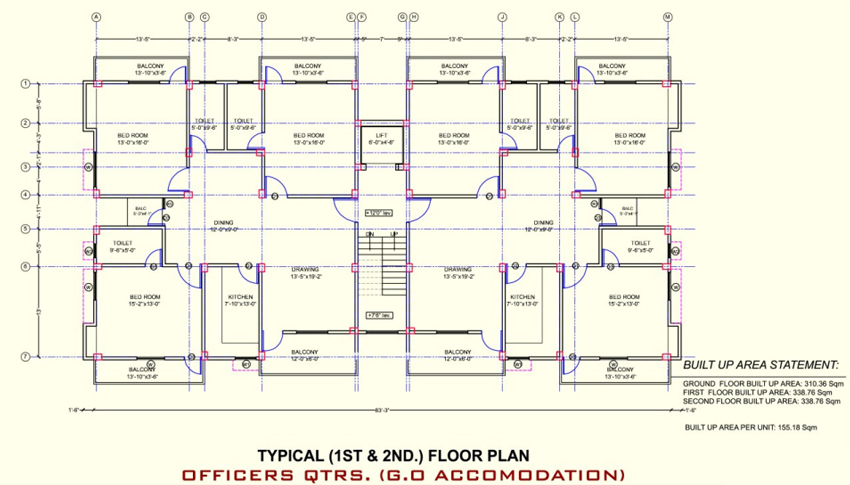

Typical(1st & 2nd) Floor Plan

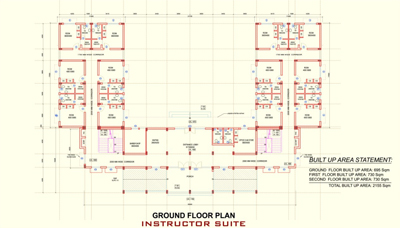

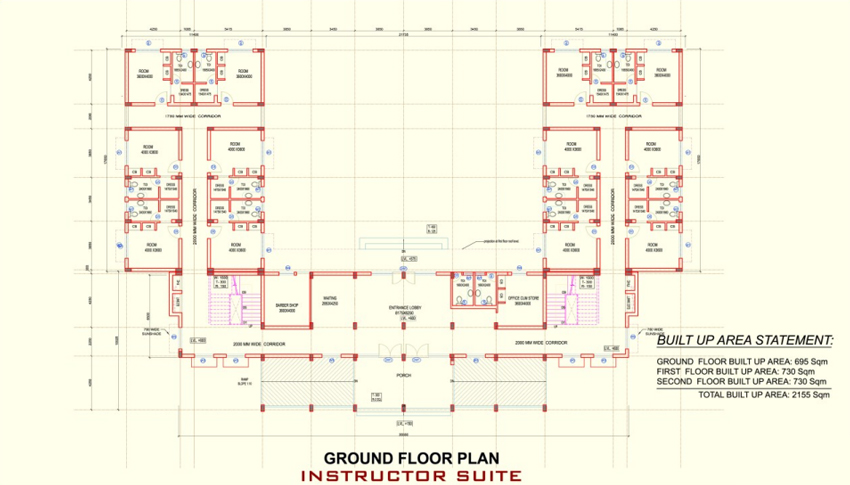

Ground Floor Plan Instructor Suite

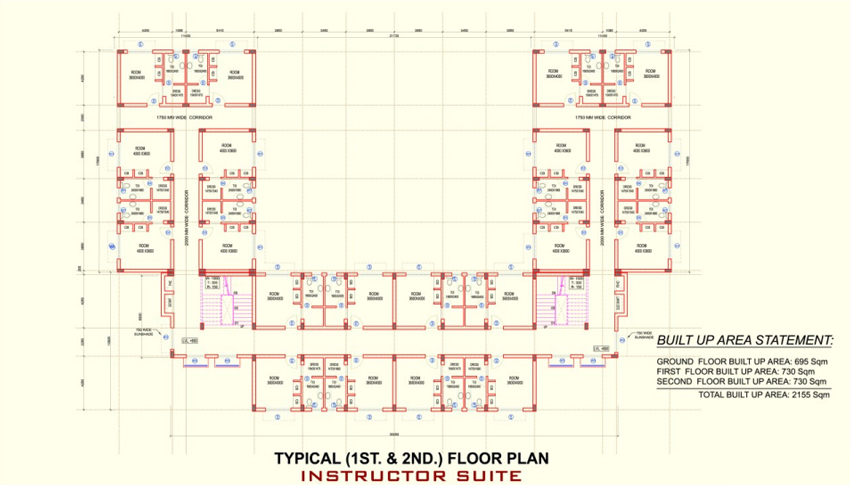

1st & 2nd Floor Plan Instructor Suite

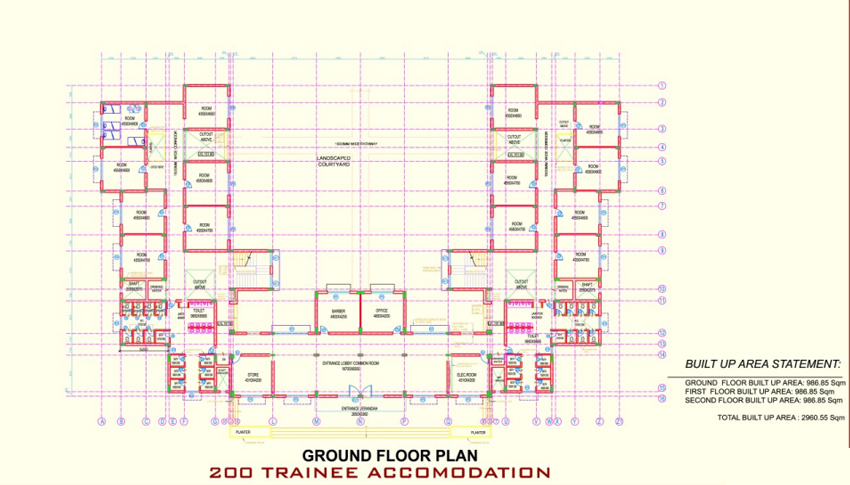

Ground Floor Plan ZOO Trainee Accommodation

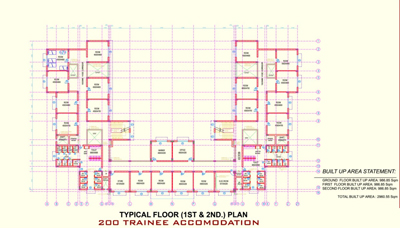

1st & 2nd Floor Plan ZOO Trainee Accommodation

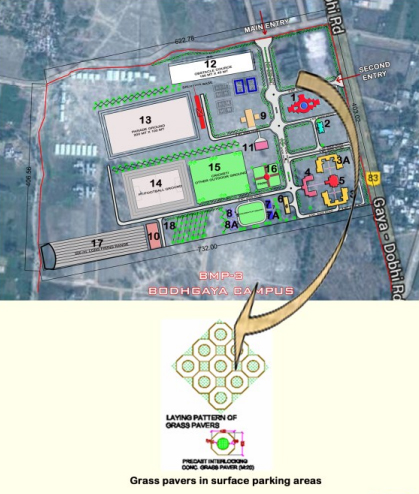

Location Map
